The desktop app

Set up a run, watch it, read the maps, inspect one place, compare two runs.

artemis ui                 # or: artemis-ui
artemis ui output/shackleton

The app is a window with four sections on the left, numbered like the chapters of a report. Ctrl+1 to Ctrl+4 switch between them, Ctrl+O opens a run folder, Ctrl+Enter starts a run. Runs you opened before are listed under the sections, together with any run folders inside ./output.

It follows the system’s light or dark setting; the switch in the top right overrides it. “Motion” turns the few interface animations off (or set ARTEMIS_REDUCE_MOTION=1). Nothing in the app goes to the network.

Run

The Run page in the dark theme: form on the left, estimate, progress and log on the right

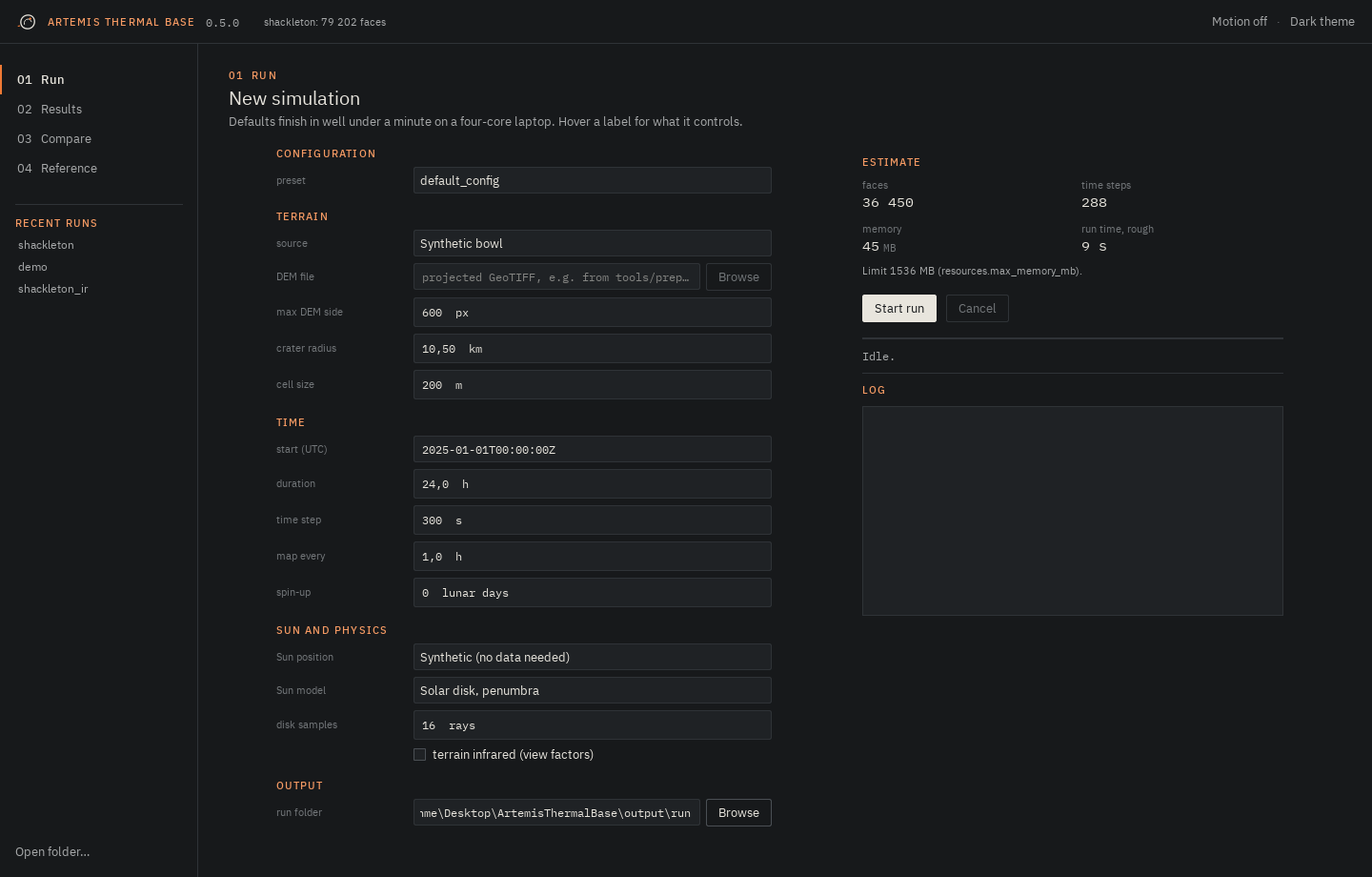

Fig. 1 Run page. The estimate updates as you type; the limit comes from the configuration.

The form starts from a bundled configuration (or any YAML file) and overrides only what you change. Hover a label for what it controls.

The estimate on the right is worked out before anything runs: the number of facets and time steps, the memory the run will need, and a rough duration. The duration is calibrated by the runs you have already done on this machine, so it gets better after the first one. If the memory estimate is above resources.max_memory_mb the note under it turns red and the run would be refused; change the cell size or switch off terrain infrared.

The simulation runs in a separate process. The window stays responsive, the log streams in, and Cancel stops the run at the next time step. When it finishes, the figures are rendered and the run opens in Results.

Results

Results page with the surface temperature of Shackleton at the last step, a selected site on the crater wall and its temperature over the lunar day

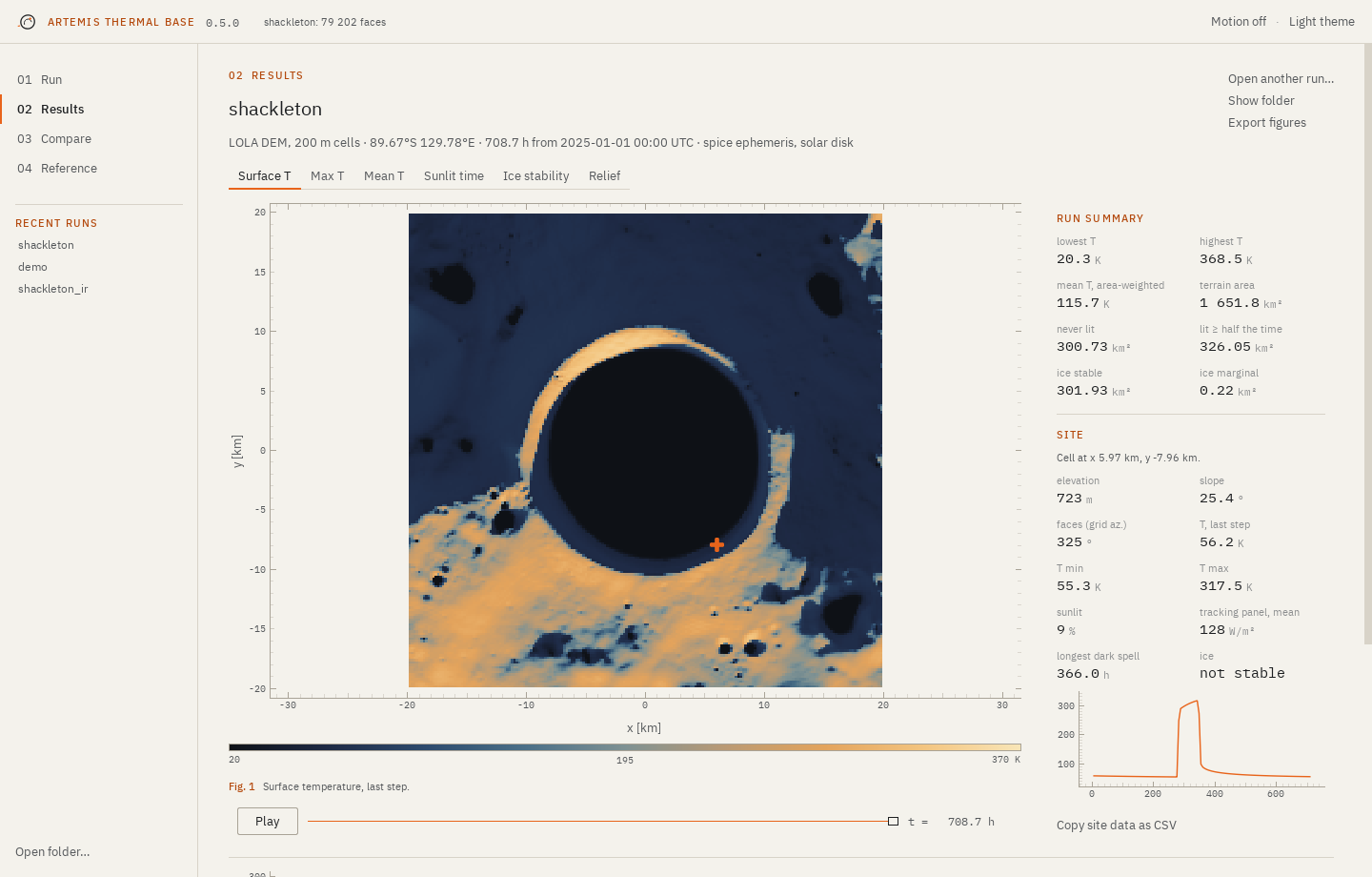

Fig. 2 Results page. The cross marks the selected cell on the inner wall; its temperature curve is on the right.

The tabs above the map switch layers:

layer shows
Surface T temperature at the last step; with the slider, at any stored step
Max T, Mean T per-cell maximum and mean over the recorded period
Sunlit time share of steps with at least half of the solar disk visible
Ice stability cold-trap class from the maximum temperature
Relief elevation

Drag on the map to pan, scroll to zoom, double-click to reset. The line under the map shows the cursor position and the value under it.

Run summary gives area-weighted numbers for the whole map: temperature range, area never lit, area lit at least half the time, and the area where ice is stable or marginal.

Site. Click a cell to see what a lander or a rover would care about:

slope and facing
from the cell’s two triangles; facing is a grid azimuth (0° along +y)
T last, min, max
surface temperatures of that cell
sunlit
share of the recorded period with at least half the Sun visible
tracking panel, mean
average sunlight on a panel that always faces the Sun, S × mean visible fraction. It ignores panel temperature and efficiency.
longest dark spell
the longest run of stored steps with less than half the Sun visible, in hours. It is limited by the map interval and by the length of the run.

The small plot is the cell’s temperature at every stored step. “Copy site data as CSV” puts the numbers and the series on the clipboard.

Ice stability layer: crater floor and small craters in the stable class

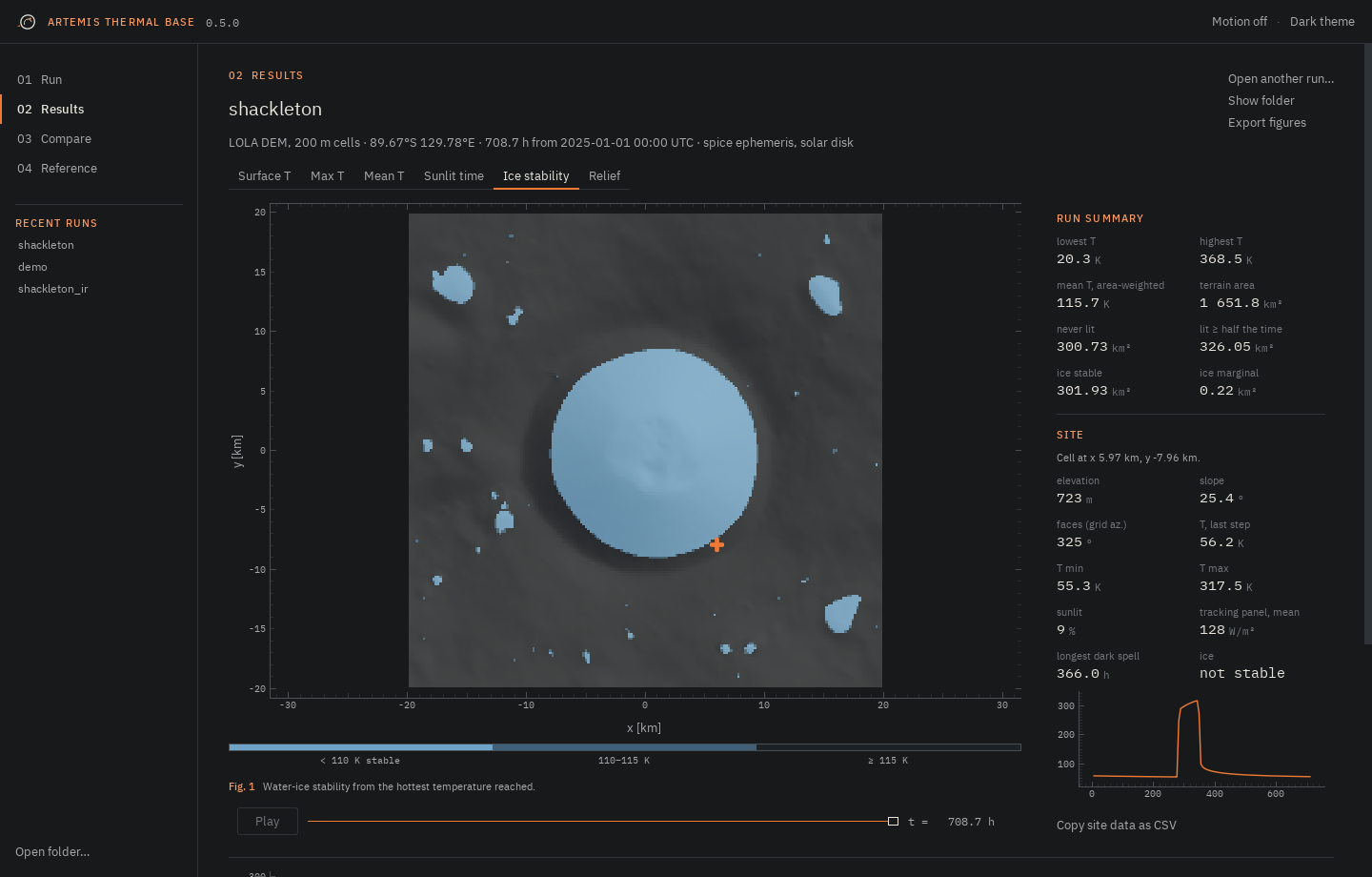

Fig. 3 Ice stability around Shackleton in the dark theme.

Compare

Two runs on the same grid (same DEM and cell size) can be subtracted cell by cell: B minus A for maximum, mean or last-step temperature, or for sunlit time. When a run finishes while another is open, the older one becomes A and the new one B, so “change one setting, run again, compare” needs no clicks. The panel lists the mean and RMS difference, the largest change and the share of cells that changed by more than one unit.

Compare page: maximum temperature of the Shackleton run with terrain infrared minus the run without it

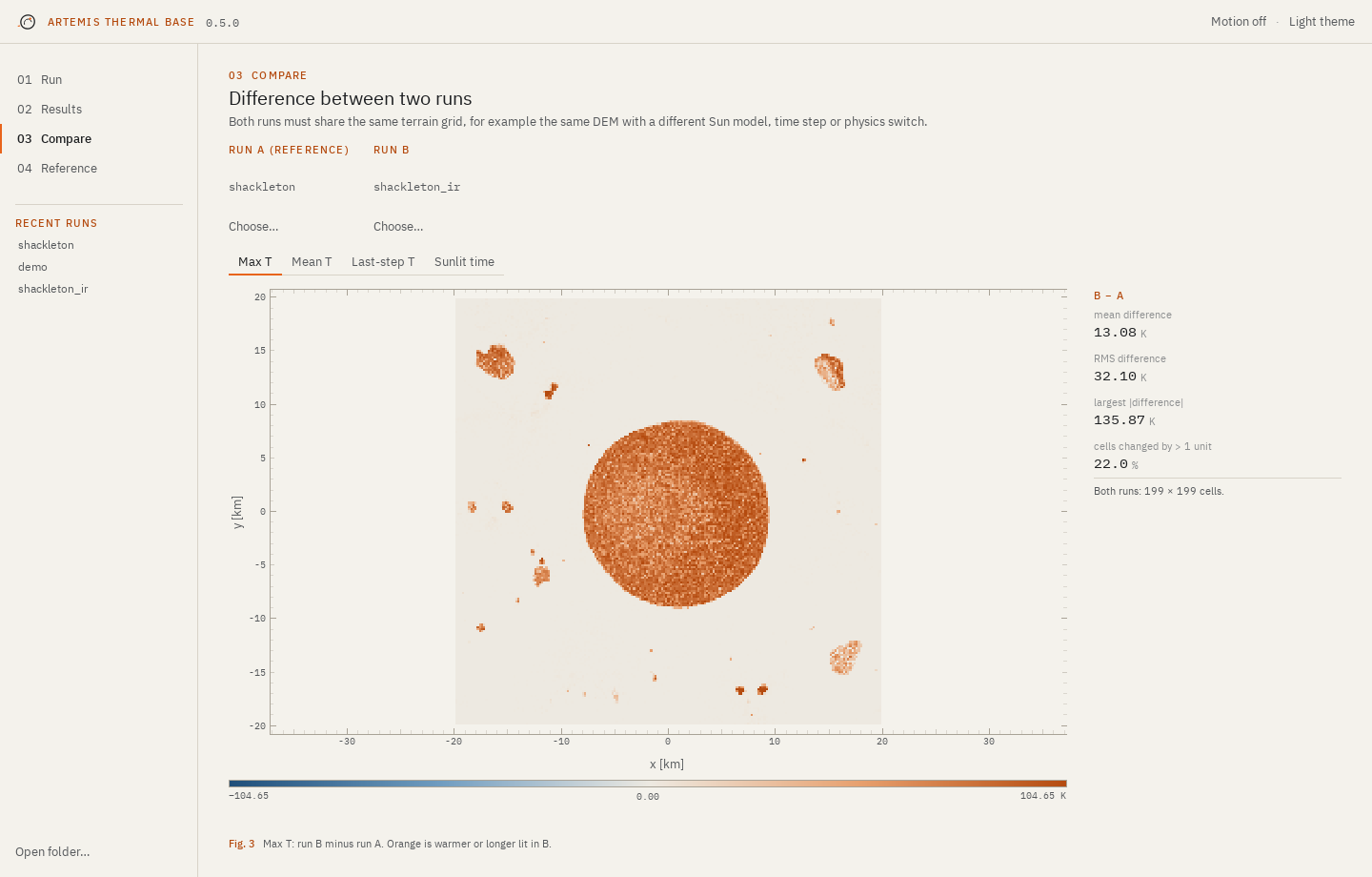

Fig. 4 Compare page. Terrain infrared adds 13 K on average and up to 136 K on crater floors; 22 % of the cells change by more than 1 K.

Reference

The surface models of the default configuration, drawn the first time you open the page: Hapke albedo against incidence angle, roughness emissivity against slope, density and conductivity against depth, and the assumptions the configuration registers. Useful to check what a parameter change does before spending a run on it.

Reference page with the Hapke albedo, roughness emissivity, density and conductivity curves

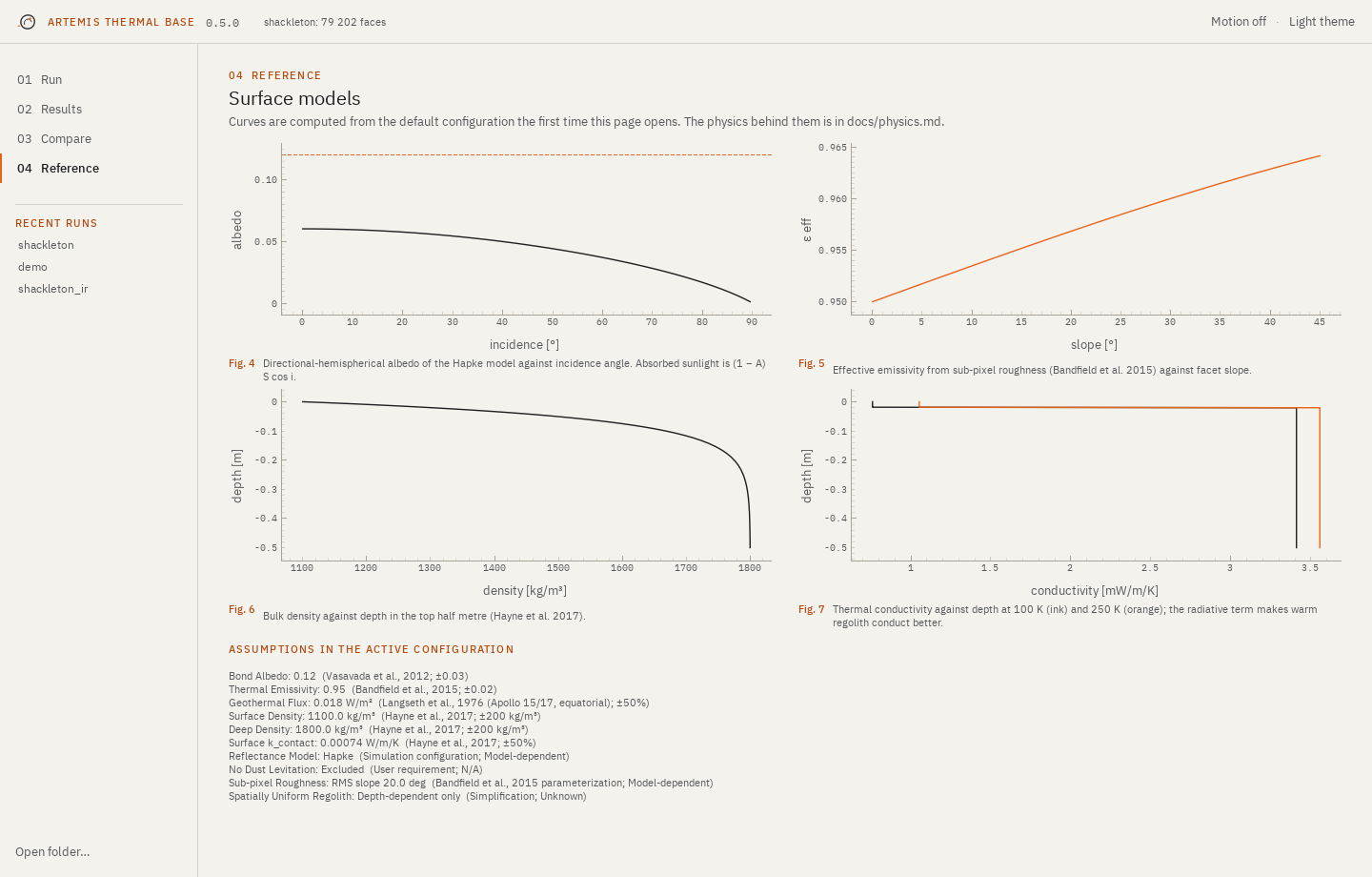

Fig. 5 Reference page.

On slow machines

The app was written to stay smooth on a laptop with integrated graphics:

  • maps are drawn as images, one pixel per DEM cell, not as point clouds;
  • run folders are memory-mapped, so opening a 500k-facet run reads only what is drawn;
  • files are read and statistics computed off the interface thread;
  • the only animations are short fades and value transitions, and they can be switched off.
